    ABS Plastic Recycling Lines Film Washing 300kg/H

    Ask Lasest Price
    Brand Name : BKL
    Model Number : BKL300
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 lines per year
    Delivery Time : 60 working day
    • Product Details
    • Company Profile

    ABS Plastic Recycling Lines Film Washing 300kg/H

    300kg/h ABS Washing Machines In Plastic Recycling Line


    This unit is mainly for ABS plastic: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and ABS after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.


    Details:


    S/NItemRequirement
    1Capacity:300kg/hr
    2Raw material:Post-consumer ABS
    3Final Products:Recycled Clean flakes with below parameters:
    Flakes size100 mm
    Moisture Content1~3%
    Total impurity200ppm
    4

    Working condition:


    Warehouse/workshop:

    Straight line dimension: 32x3.5x4.5m

    (also we can install the line as “U” or“L” shape)

    Plant height: >5m Area: >500 ㎡

    Power supply:Supply voltage: 3*380V+N+PE;

    Voltage tolerance: +5%/-5%;

    Control voltage: 24VDC+220VAC;

    Frequency: 50HZ+-2%

    Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine.

    Air source: 0.6-0.8MPa

    All water supplying and draining piping

    Water supplying and water drain pools underground Water treatment system can buy optional

    Steam supplying can buy optional to instead of electricity heating Other installation facility and tools

    Sound proof for the crusher and other machines optional choose


    5


    Energy consumption:

    Installed Power about:88KW

    Actual consumption 88*70%=60KW

    Consumption: 10 tons/h(Proposed water-treatment project)

    Pressure: 0.4Mpa,The water consumption is 200kg/h, and the water circulation is 9.8 tons per hour.Steam supply

    Labor requests:2-3 persons.


    Machine parts list:


    NOMachine nameQuantityRemark
    1Belt Conveyor1setNecessary
    2Friction washer1setNecessary
    3Wet Crusher1setMaterial of blades: SKD-11
    4Lower Speed Friction Washer1setNecessary
    4Floating Washer1setNecessary
    6Screw Conveyor1setNecessary
    7blower system1setNecessary

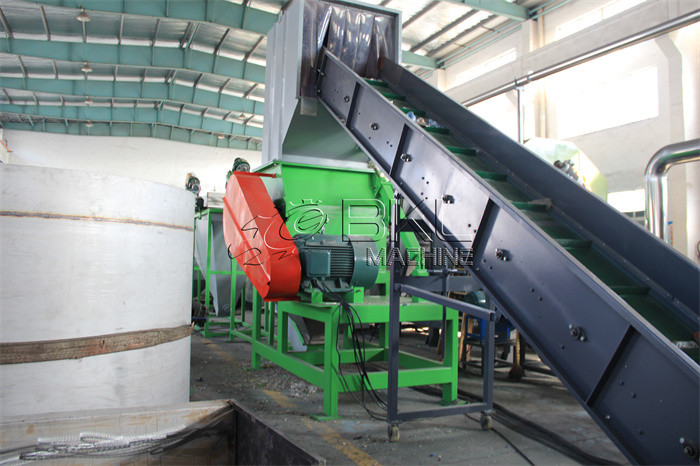

    Belt conveyor: conveying dirty plastic film or bags into crusher. If too much scrap iron, metal detector may be needed.


    Crusher: crushing with water, cutting ABS or bags into small pieces.


    Screw loader: load ABS flakes into the next step


    High-speed friction washing machine: wash out the sand, soil and loading the material in ABS flakes


    Washing tank: separate the sand, soil and other dirties from ABS


    Horizontal dewatering machine: remove the water from the ABS flakes
