    300kg/H Waste Plastic PP Raffia Bags And Tons Bags Washing Line

    Ask Lasest Price
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20 lines per year
    Delivery Time : 60 working day
    • Product Details
    • Company Profile

    300kg/H Waste Plastic PP Raffia Bags And Tons Bags Washing Line

    300kg/H Waste Plastic PP Raffia Bags And Tons Bags Washing Line


    300kg/H Waste Plastic PP Raffia Bags And Tons Bags Washing Line300kg/H Waste Plastic PP Raffia Bags And Tons Bags Washing Line


    Description:

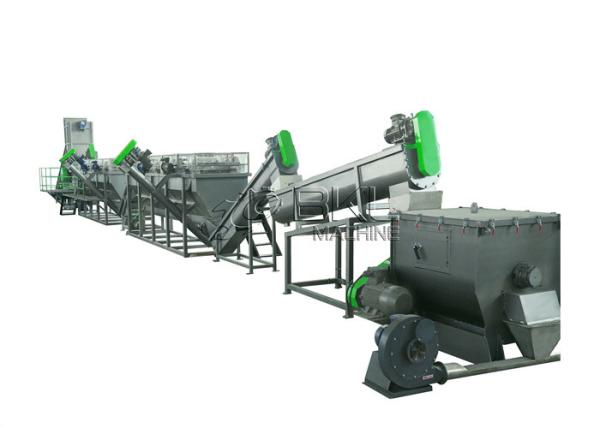

    This unit is mainly for PP Raffia Bags: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and PP Raffia Bags after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.

    .

    Details:


    S/NItemRequirement
    1Capacity:200-300kg/hr
    2Raw material:PP,HDPE flakes &PP PE film
    3

    Final Products:

    Recycled Clean flakes with below parameters:
    Flakes size60~120 mm&12-14mm
    Moisture Content5~6%
    4

    Working condition:

    (provided

    by client)

    Warehouse/workshop:

    Straight line dimension about: 26x2.5x4.5m

    (also we can install the line as “U” or“L” shape)

    Plant height: >5m

    Area: >500 ㎡

    Power supply:Supply voltage: 3*380V+N+PE;

    Voltage tolerance: +5%/-5%;

    Control voltage: 24VDC+220VAC;

    Frequency: 50HZ+-2%

    Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine.

    Air source: 0.6-0.8MPa.All water supplying and draining piping

    Water supplying and water drain pools underground Water treatment system can buy optional Steam supplying can buy optional to instead of electricity heating Other installation facility and tools. Sound proof for the crusher and other machines optional choose


    5


    Energy consumption:

    Actual power per hour consumption: 138KW*70%=97KW

    Water consumption: 4 tons Per Hour (with the water treatment

    system)Steam supply,The water consumption is around 200kg/h, and the water circulation is 3.8 tons per hour.

    Labor requests:2-4 persons.


    Machine parts list:


    NOMachine nameQuantityRemark
    1Belt Conveyor1 setNecessary
    2friction washer1 setNecessary
    3Wet Crusher1 setMaterial of blades: SKD-11
    4Lower Speed Friction Washer1 setNecessary
    4Floating Washer1setNecessary
    6Screw Conveyor1 setNecessary
    7blower system1setNecessary

    In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.


    Each component before assembly needs strictly control by inspecting personnel.


    Each assembly is in charged by a master who has working experience for more than 10 years


    After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
