    Plastic Recycling Machine Price For PP Woven Bags Recycling Machine

    Ask Lasest Price
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20 lines per year
    Delivery Time : 60 working day
    Brand Name : BEAKELAND
    Model Number : 500KG/H
    • Product Details
    • Company Profile

    Plastic Recycling Machine Price For PP Woven Bags Recycling Machine

    Plastic Recycling Machine Price For PP Woven Bags Recycling Machine


    Plastic Recycling Machine Price For PP Woven Bags Recycling MachinePlastic Recycling Machine Price For PP Woven Bags Recycling MachinePlastic Recycling Machine Price For PP Woven Bags Recycling MachinePlastic Recycling Machine Price For PP Woven Bags Recycling Machine


    Description:


    The production line including the conveyor belt,metal detector ,plastic wet crusher,floting washing tank,high speed friction washer,centrifugal dewatering machine drying system and label separating machine,material collecting packing system.


    After crushing and washing and drying,we can use it to pelletizing line.We also can customzed it for you according to your requirement..

    .

    Details:


    S/NItemRequirement
    1Capacity:500kg/hr
    2Raw material:Post-consumer PET bottles
    3Final Products:Recycled Clean flakes with below parameters:
    Flakes size100 mm
    Moisture Content1~3%
    Total impurity200ppm
    4

    Working condition:


    Warehouse/workshop:

    Straight line dimension: 32x3.5x4.5m

    (also we can install the line as “U” or“L” shape)

    Plant height: >5m Area: >500 ㎡

    Power supply:Supply voltage: 3*380V+N+PE;

    Voltage tolerance: +5%/-5%;

    Control voltage: 24VDC+220VAC;

    Frequency: 50HZ+-2%

    Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine.

    Air source: 0.6-0.8MPa

    All water supplying and draining piping

    Water supplying and water drain pools underground Water treatment system can buy optional

    Steam supplying can buy optional to instead of electricity heating Other installation facility and tools

    Sound proof for the crusher and other machines optional choose


    5


    Energy consumption:

    Installed Power about:95.4KW

    Actual consumption 95.4*70%=67KW

    Consumption: 10 tons/h(Proposed water-treatment project)

    Pressure: 0.4Mpa,The water consumption is 200kg/h, and the water circulation is 9.8 tons per hour.Steam supply

    Labor requests:2-3 persons.


    Machine parts list:


    NOMachine nameQuantityRemark

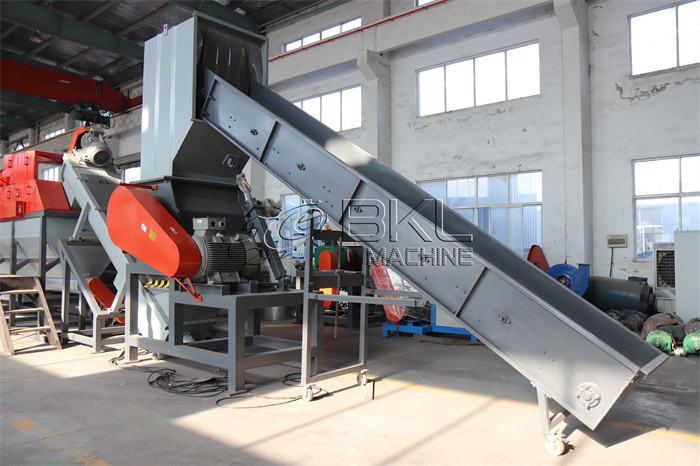

    1Belt Conveyor2setsNecessary
    2friction washer2setsNecessary

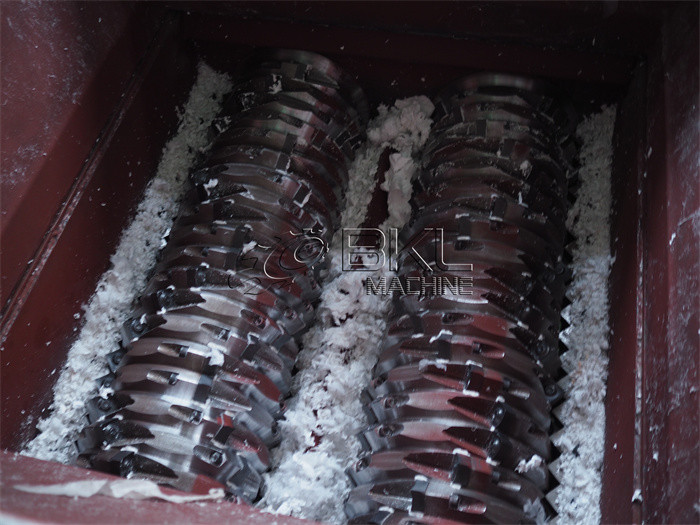

    3Wet Crusher1 setMaterial of blades: SKD-11
    4Lower Speed Friction Washer2 setsNecessary
    4Floating Washer1setNecessary
    6Screw Conveyor2 setsNecessary
    7blower system1setNecessary

    In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
