    Two Stage PET Flakes Pelletizing Machine Plastic Film Recycling 100mm

    Two Stage Pelletizing System In Plastic Recycling Equipment


    Description:


    Two Stage Pelletizing System belong to plastic recycling equipment equipped with a cutter compactor ( agglomerator) on main extruder compared with the ordinary granulation machine. This new design makes the machine in compact structure,Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into extruder evenly. The degassing system and hydraulic screen changer equipped on extruder for get high purity pellets finally.The cutting system adopts to die face (water-ring) or strand( spaghetti) cutting for varies material application.


    Two stage extruder is ideal choice for recycled film material with some moisture percent,such as washed or heavy printed PE films/ PP raffia/ woven ect.


    Working Flow of Two Stage Pelletizing System​:


    Belt conveyor → Cutter compactor(agglomerator) → Main extruder → Hydraulic screen filter changer→ Second stage extruder → Hydraulic screen filter changer→ Water ring cutting pelletizing → Vibration machine → Dewatering machine → Blower → Storage hopper → Electric control panel


    Technical parameters for Two Stage Pelletizing System:


    SeiresModelScrew Diameter(mm)L/DCapacity (kg/h)
    ML85-858533~36:1 +10:1150~250
    100-10010033~36:1 +10:1250-350
    130-13013033~36:1 +10:1450-600
    160-16016033~36:1 +10:1650-800
    180-200180,20033~36:1 +10:1800-1100

    Advantages:


    1.High efficiency

    Compared with the primary design,the output of BKL plastic recycling granulation line has been increased 20%.


    2.Low power consumption

    The power consumption reduced 15% compared with the primary design.


    3.Highly automatically

    Only 2 people for one


    Photos for Plastic Recycling Equipment:


    Two Stage PET Flakes Pelletizing Machine Plastic Film Recycling 100mmTwo Stage PET Flakes Pelletizing Machine Plastic Film Recycling 100mm

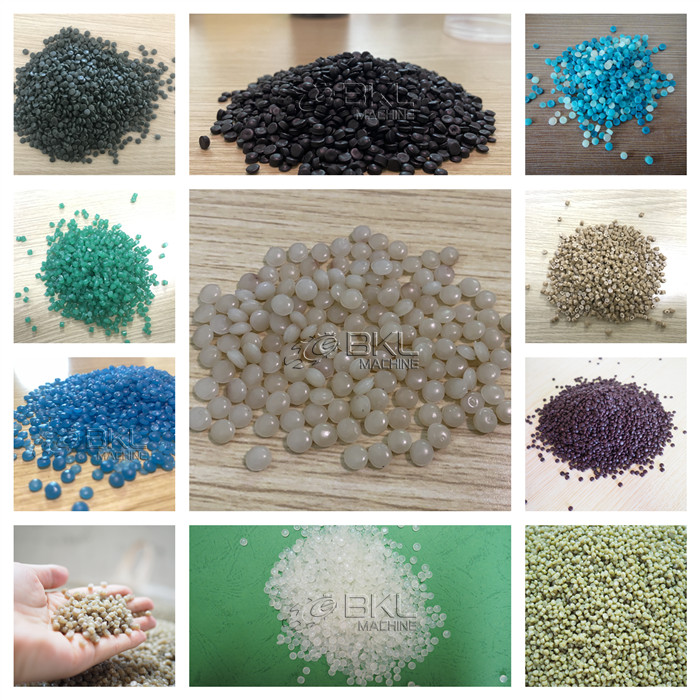

    Pellets Products:


    Quality Two Stage PET Flakes Pelletizing Machine Plastic Film Recycling 100mm for sale
