PP PE Plastic Film Washing Machine in Plastic Recycling Washing
Line
Plastic Recycling Washing Line Description
Plastic Film Washing Machine is widely used to washing recycling
the used PP/PE plastic soft plastic. Such like shopping bags,
packing films, garbage bags, woven bags, non-woven bags and films.
This recycling machine can crushing washing and drying the dirty
soft plastic into clean film flakes.
After plastic film/bag flakes cleaned, you can make them into
pellets/granules with next process, which called plastic
pelletizing machine.
This production line is high automatic operating and low consume,
can save labor, save power and save water, easy to maintenance.
With advanced design, concepts and technologies to suit different
status of waste plastic bags/films. This PP PE plastic recycling
machine could layout as "L", “S” or "U" shape according different
workshop.
The whole line includes :
Belt Conveyor: The materials go into the crusher by the crawler
belt, which is moved by inside scroll wheel.
Crusher: Crush the material.
Screw Loader: Put the flakes into the Hot washer to clean.
Hot Washer: If the bottle is very dirty, like oil, sand, it must be
use hot washer.
Screw Loader: Put the flakes into the High-speed Friction Washer to
clean.
High-speed Friction Washer: After crushing material from enters the
mouth, through the high speed on the axis of the blade flap and
spray water to the common function of good cleaning effect.
Floating Washer 1: It used in cleaning pet flakes, make the flakes
cleaner and whiter. Also is the necessary equipment of the bottle
and bottle cap.
Floating Washer 2: It used in cleaning pet flakes, make the flakes
cleaner and whiter. Also is the necessary equipment of the bottle
and bottle cap.
Dewatering: Rejection the water from the flakes, moisture content
is less than 2%.
Drying Pipeline
Silo: Storage materials.
Electrical Control Cabinet
Working Flow of Plastic Film Washing Machine:
Belt conveyor → Crusher (with water) → High speed friction washing
machine → Floating washing machine(Can be hot washer) → High speed
friction washing machine → Floating washing machine → dewatering
machine → drying pipeline system → Silo→control cabinet
Plastic Film Washing Machine Technical parameter:
| Model | BKL-FS300 | BKL-FS500 | BKL-FS1000 | BKL-FS2000 |
| Capacity (KG/H) | 200-300 | 400-600 | 800-1000 | 1800-2000 |
| Water consumption(T/H) | 2--3 | 3--4 | 4--6 | 6--8 |
| Power Consumption(/H) | 110--160 | 160-230 | 280-450 | 550-800 |
| Staff(person) | 2-3 | 2-3 | 4-6 | 6-10 |
| Factory Area (M2) | 350 | 450 | 500 | 1000 |
| Final moisture(%) | 5-10 | 5-10 | 5-10 | 5-10 |
| Final particle size(mm) | 60-100mm | 60-100mm | 60-100mm | 60-100mm |

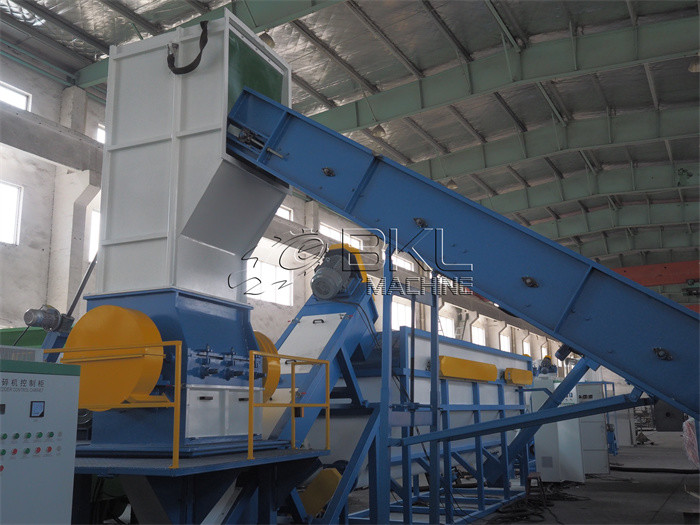

Detailed Photos
After this PP PE Plastic Film Washing Machine, We also offer the
following recycling lines of PP PE plastic granulator pelletizing
recycling machine, that can make the washed PP PE flakes into PP PE
granules/pellets.
