    Large Diameter PPR Plastic Crusher Machine Pet SWP600

    Ask Lasest Price
    Brand Name : BEAKELAND
    Model Number : SWP600
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 80 SETS/YEAR
    Delivery Time : 45 WORKING DAYS
    • Product Details
    • Company Profile

    Large Diameter PPR Plastic Crusher Machine Pet SWP600

    Large Diameter PVC HDPE PE PPR Pipe Profile Plastic Crushing Machine


    Description


    SWP series PVC HDPE PE PPR Pipe Profile Plastic Crushing Machine are designed to meet the needs of high-volume crushing of PVC hollow plates, plastic trays and wide profiles, PPR pipe,HDPE pipe, corregated pipes eliminating the pre-decomposition process of products using conventional machines, saving labor, reducing labor intensity, and improving crushing recovery efficiency.


    According to the material characteristics, design the appropriate cutting angle, cutting speed, and wear-resistant design to ensure that the system runs continuously for a long time, so as to achieve the ideal material crushing effect.


    Applications:


    Relatively long HDPE PVC special shaped materials, such as plastic pipe, pipe fittings,plastic door & window,sheet ,pallets etc.

    Waste PVC pipes, PE pipes with wall thickness less than 20mm.


    Main Technical Parameter:


    ITEMUNITSWP400SWP600SWP800SWP1000SWP1200SWP1400
    Rotor DiametermmΦ320Φ500Φ500Φ600Φ600Φ800
    Rotor Widthmm400600800120012001400
    Rotor speedRpm560500500470470410
    Rotor Knivespcs366101020
    Stator Knivespcs244444
    Cutting Chamber Dimensionmm300x400600x500800x5001000x6001200x6001400x800
    Motor Powerkw15-2222~3037-5555-7575-9090-110
    CapacityTon/hr200~2000kg/h
    Open hopperBy manual or hydraulic controlBy hydraulic control
    Open screen cradleBy manual or hydraulic controlBy hydraulic control

    Features:


    1. Compact design, saves space,Ground hopper easy for feeding long material

    2. Tilt up and down case for easy blade replacement

    3. Hydraulically driven hopper and box opening device for easy maintenance

    4. High safety factor bearings reduce the chance of bearing damage

    5. Precise spindle machining (V cut or Claw type)

    6. Both sides of the box are equipped with replaceable wear plates

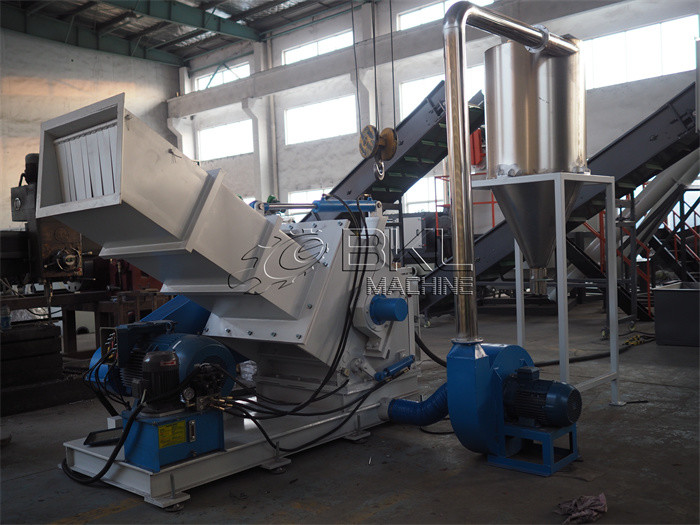

    7.Standard models can be equipped with air blower device.Detailed photos for Long profile HDPE pipe Waste Plastic Crusher:


    Large Diameter PPR Plastic Crusher Machine Pet SWP600Large Diameter PPR Plastic Crusher Machine Pet SWP600Large Diameter PPR Plastic Crusher Machine Pet SWP600
