Muti-Function Pallet Fabric Cloth One Shaft Shredder Machine
Brief info:
| Type: | Heavy type Swing arm pusher Single shaft shredder |
| Model No.: | YPS 850,YPS1050,YPS1250,YPS1450,YPS2000,YPX1500,YPX2000 |
| Application raw material: | PP PE(HD,LD,LLD) PS ABS PVC PA PS ect. |
| Raw material shape: | Kinds of hard plastics like Pipes,lumps,blocks,film in bales |
| Core Components | the motor, Reducer, rotating knife shaft, imported knife, fixed
knife rack, base cabinet, hydraulic cylinders, pumps, cylinders,
ect |
| Structure: | Top Feed |
| Knife Classification: | Claw Knife shredder |
| Knife Roller: | Solid Knife Roller |
| Certification: | CE |
| Export Markets: | Global |
| Packing: | Export Standard Package |
| Origin factory location: | Zhangjigang City, Jiangsu Province, China. |
| HS Code: | 84778000 |
Description:

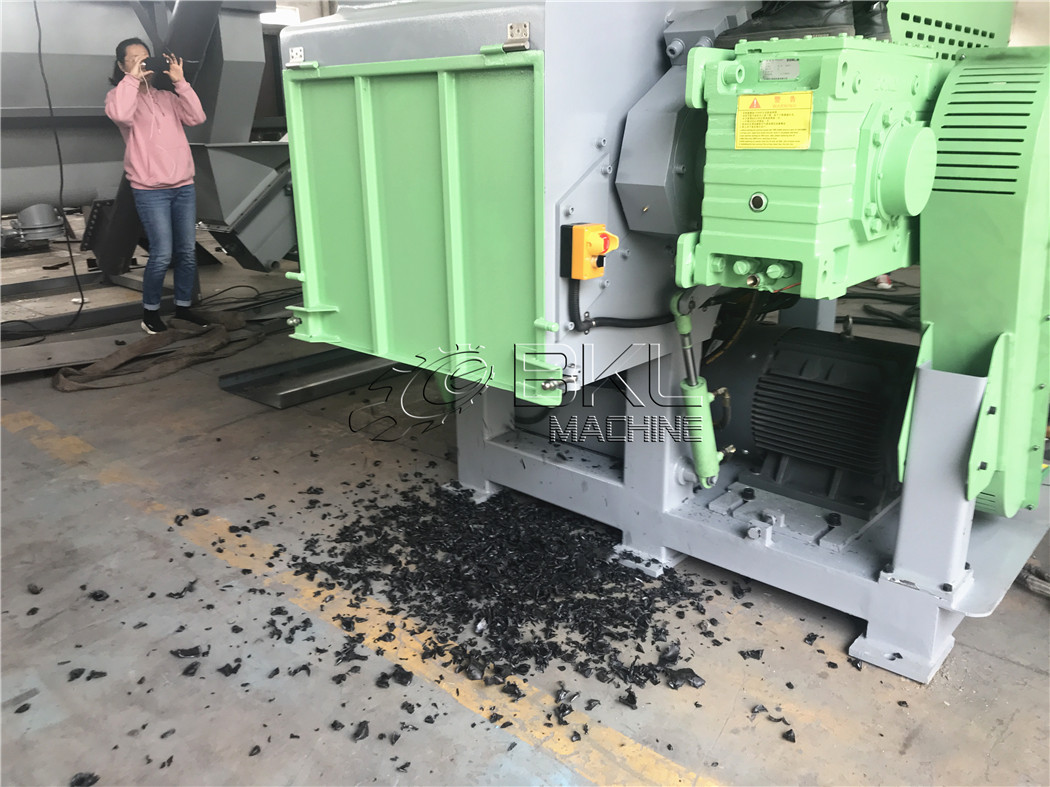

Muti-Function Pallet Fabric Cloth One Shaft Shredder Machine
YPS/YPG series Single Shaft shredders are a kind of heavy duty size
reduction machines which are capable for shredding a large range of
materials such as plastics, woods,textiles,tires,cardboard,packed
fibers,film in rolls ect. These models machines are specially
designed for varies thick material like plastic
blocks,lumps,polymer pipes, household plastics ect.
Application:
Plastic lump, plastic purgings, plastic pipe, plastic sheet, PE
film, PP woven bag, PET bottle, industrial waste paper, wood
pallet, circuit board, aluminum material, copper material, wire,
cable, etc.
Final Products:
Features:
1.Easy for operation and maintainence
2.Low Power consumption,low noise,low price
3.Large diameter rotor,Low speed, high torque geared drive
4.Compact structure,low occupation place.
5.Powerful hydraulic swing type ram
6.Robust welded steel construction.
7.Two rotor designs with concave ground square knives

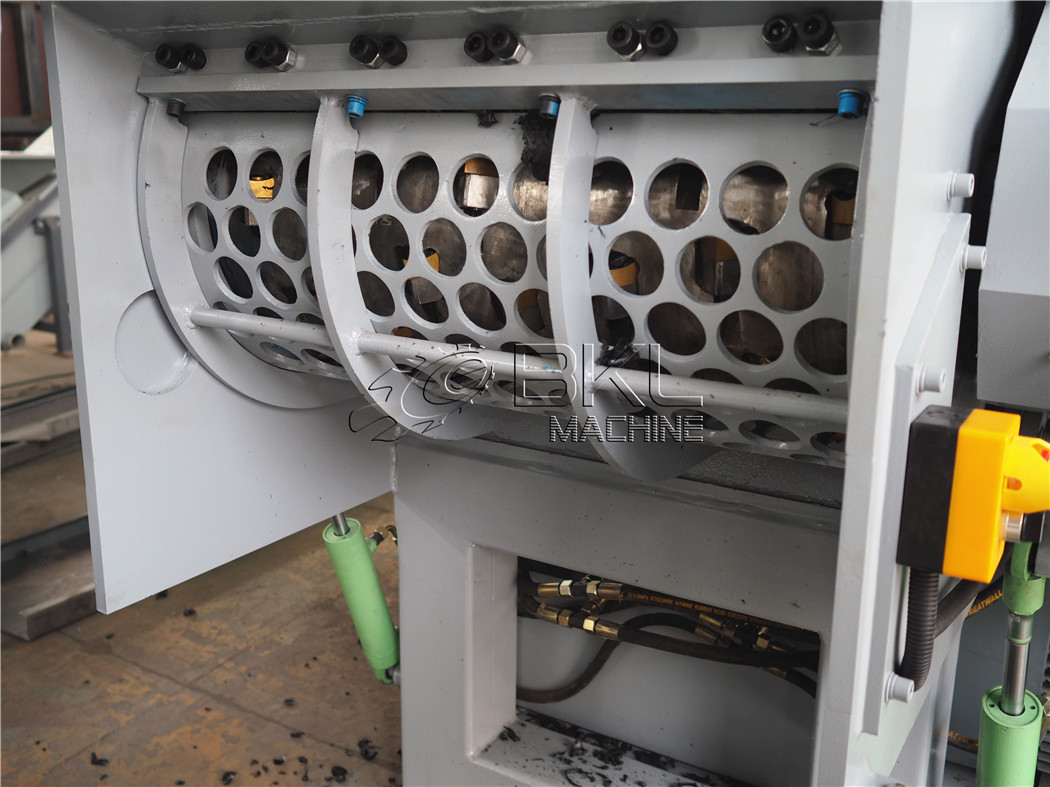

8.Electrical hydraulic control to open screen cradle
9.The screen filter sizes ranges for varies material particle size
control.
10.PLC program control system, automatically rotating, stop and
realize fully automatic operation of equipment, safe and reliable
running of the machine.
11.Electrical overloading protective
Main technical parameter:
| Model | YPS850 | YPS1050 | YPS1250 | YPS1450 | YPS2000 | YPX1500 | YPX2000 |
| Rotor diameter(mm) | 460 | 460 | 460 | 460 | 460 | 750 | 750 |
| Rotary speed(rpm) | 74 | 74 | 74 | 74 | 74 | 52 | 52 |
| Motor power(KW) | 45/55 | 55/75 | 75/90 | 90/110 | 2×55/2×75 | 2×75 | 2×90 |
| Rotary knife(PCS) | 60/64 | 80/75 | 90/88 | 102/96 | 144/140 | 76 | 96 |
| Stator knife(PCS) | 6 | 6 | 8 | 10 | 14 | 10 | 14 |
| Knife material | SKD11/ D2 |
| Hydraulic power(KW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
| Screen size(mm) | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Feeding size(mm) | 840*1570 | 1000*1570 | 1200*1570 | 1400*1570 | 1960*1570 | 2540*1620 | 2540*2020 |
Advantages:
1.Whole chamber moves around, high shredding efficiency, never
stuck.
2. Solid main shaft, the shaft & knife rest is an integrated part
and processed by CNC machining center with long life.
3.Transmission parts are locked by coupling and iron pins, protect
reducer while avoid power loss.
4. The knife material is imported from TAIWAN/JAPAN, long service
life.
5.Electrical system adopts PLC program 6.Features start, stop,
reverse functions along with automatic overload return mechanism to
prevent damage to working parts.
7.CE certified
