Waste Large SS 800 HDPE Plastic Shredder Machine Bottle SKD11

    Buy cheap Waste Large SS 800 HDPE Plastic Shredder Machine Bottle SKD11 from wholesalers

    Buy cheap Waste Large SS 800 HDPE Plastic Shredder Machine Bottle SKD11 from wholesalers
    • Buy cheap Waste Large SS 800 HDPE Plastic Shredder Machine Bottle SKD11 from wholesalers

    Waste Large SS 800 HDPE Plastic Shredder Machine Bottle SKD11

    Ask Lasest Price
    Brand Name : BEAKELAND
    Model Number : SS800
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 80 SETS/YEAR
    Delivery Time : 15~35 WORKING DAYS
    • Product Details
    • Company Profile

    Waste Large SS 800 HDPE Plastic Shredder Machine Bottle SKD11

    Waste Large HDPE Pipe Hose Shredding Machine Plastic Shredder Machine


    Description:


    Plastic Shredder Machine


    Through the interaction between the rotor blades and the fixed fixed blades in the shredder machine, the single shaft waste plastic shredder machine can shred, cut, and squeeze materials into small sizes. It can be used to crush various materials, including plastic materials like thick-wall plastic sheet, pipe, rubber, film, plastic tray, carpets, wood, kitchen and domestic waste.


    The cutter head is composed of a spindle and multiple quadrilateral cutters. There are four sides could be applied and easy to change.


    The V-shaped rotary tool is fixed on a single shaft. The fixed blades are installed on adjacent rotating knives at an angle to achieve better cutting. The material is repeatedly shredded between the "V"-shaped rotating cutter and the fixed cutter.


    During the grinding process, the "V"-shaped rotor blades are installed to ensure uniform cutting, save energy and reduce noise. Moreover, the blades are also very easy to install and remove.

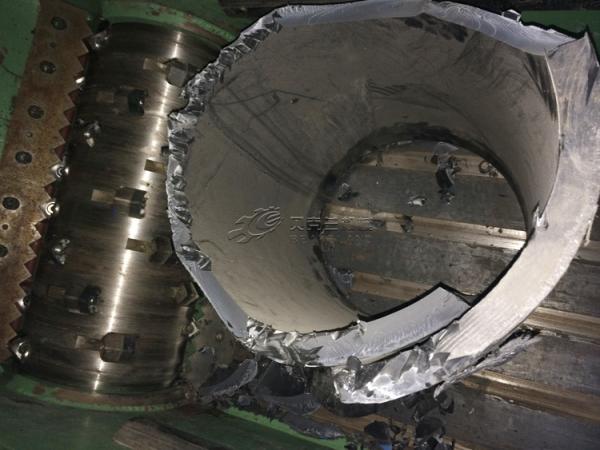

    Details Photo:


    Applications:


    Plastic lump, plastic purgings, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle, industrial waste paper, wood pallet, circuit board, aluminum material, copper material, wire, cable, etc.


    before After


    Features of Plastic shredder Machine:


    ▶Low rotation speed
    ▶High torque gearbox

    ▶ Electrical overloading protective,

    ▶Compact structure

    ▶PLC program control system


    Main technical parameter of Plastic shredder Machine:


    Shredder ModelSS600SS800SS1000SS1200SS1500
    Rotation diameter260355355420480
    Rotation speed(rpm)8080808080
    Rotary blades(pcs)26/4038/5646/6868/8078/92
    Fixed blades(pcs)12233
    Hydraulic Station Power(kw)2.2345.57.5
    Oil cylinder stroke(mm)750850105012001400
    The use of pressure(Mpa)6~126~126~126~126~12
    Crushing capacity(kg/h)250~400250~450300~600500~1000600~1200
    Feeding caliber(mm)550*650700*900880*11001070*11501280*1300
    Power of main motor(kw)22/3037/5555/7575/9090/110
    Machine weight(kg)25003700480055006800
    Dimension(L*W*H)(cm)240*140*190300*160*225340*170*250380*220*290420*300*330

    More Photos for Single shaft shredder / Plastic Shredder Machine:
