    Lifting 24KW Plastic Dryer Machine 1000L High Speed Mixer For Pvc Compounding

    Ask Lasest Price
    Brand Name : BEAKELAND
    Model Number : HG500
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 SETS PER YEAR
    Delivery Time : 15-35 WORKING DAYS
    • Product Details
    • Company Profile

    Lifting 24KW Plastic Dryer Machine 1000L High Speed Mixer For Pvc Compounding

    Lifting Mixing Dryer Plastic Mixer Dryer In Plastic Mixing Machine


    Description

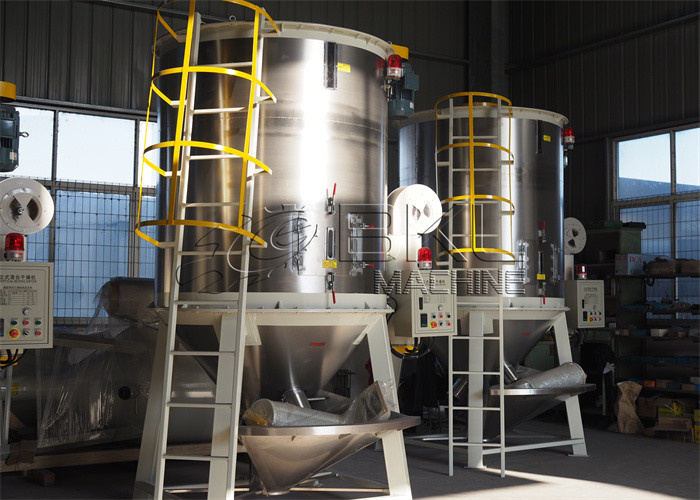

    Plastic Mixer Dryer is a kind of lifting mixing dryer machine which is widely used in mixing,drying,coloring for all kinds of resin such as PVC,PP,PE.


    1. The lifting mixing dryer includes two stages of spiral rapid transports. The first stage is to move the raw material to the barrel. The second stage is lift the material to the top of barrel rapidly and scatter it out like umbrella shape. Hot wind will blow upwards and penetrate the raw material,dynamic drying with complete heat exchange is conducted.

    2.When the raw material in the barrel is rolling,hot wind is constantly blowing from the center, so mixing and drying is synchrionously conducted, This saves time and power. This machine could use the mixing function alone by turn off the hot air heating if the material is dry enough.

    3.The barrel body, spiral vanes, shaft, cylinder, support frame and the parts which touch the raw material are all made of stainless steel.


    Specification Parameters:


    ModelHG500HG1000HG2000HG3000HG4000
    Volume1000L2000L4000L6000L8000L
    Capacity(kg/h)5001000200030004000
    Lift Screw Motor(kw)2.2345.55.5
    Lift Screw Diameter(mm)219219273273273
    Lift Screw Blade Thickness (mm)33333
    Principal Axis Size(mm)60×460×460×460×460×4
    Wall Thickness(mm)222.533
    Center Bearing Bracket Size(mm)3232383838
    Lift Screw Speed(rpm)320320320320320
    Blow Motor(kw)1.11.52.233
    Heating Power(kw)2436424848
    Overall Size(Dia x H)(mm)Ø1100×2450Ø1300×2750Ø1600×3400Ø1910×3600Ø2100×4000

    More photos:


    Lifting 24KW Plastic Dryer Machine 1000L High Speed Mixer For Pvc CompoundingLifting 24KW Plastic Dryer Machine 1000L High Speed Mixer For Pvc CompoundingLifting 24KW Plastic Dryer Machine 1000L High Speed Mixer For Pvc CompoundingLifting 24KW Plastic Dryer Machine 1000L High Speed Mixer For Pvc Compounding
