    HDPE Flakes Plastic Granulating Line

    Ask Lasest Price
    Brand Name : BEAKELAND
    Model Number : SJ150
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 5 sets per year
    Delivery Time : 65 WORKING DAYS
    • Product Details
    • Company Profile

    HDPE Flakes Plastic Granulating Line

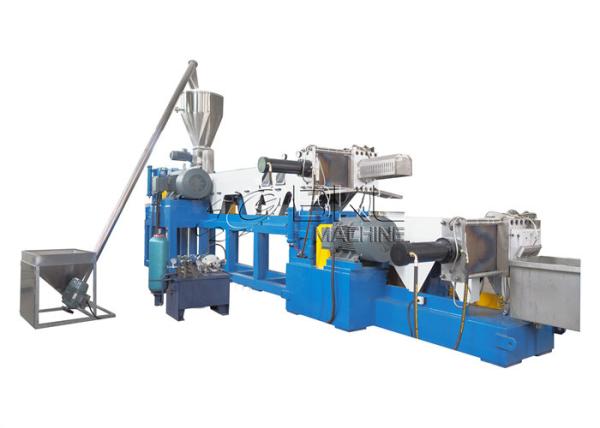

    HDPE Flakes Waste Plastic Recycling Pelletizing Machine


    Description:


    Our HDPE Flakes Waste Plastic Recycling Pelletizing Machine with international advanced recycling technology and combined with the actual application condition. It is design specializes for recycling the recycled washed plastic PP PE rigid plastic flakes, such as plastic milk bottle flakes, shampoo bottle flakes, medicine bottle flakes, pe drinking bottle flakes, plastic basin flakes, plastic bucket flakes, etc.


    After processing techniques such as feeding, heating, melt, cooling, drying, cutting etc., the final products are PP PE plastic pellets, granules that can be further to produce plastic chair, plastic profile, plastic bottle, drainage pipes, plastic sheet etc.


    Functions:


    1. Screw feeder: The first step of the pelletizing recycling machine, plastic scraps such as PP PE rigid washed flakes conveyed into the hopper through screw, the screw connect sensor to detect the material in hopper, once the flakes are full in hopper, the screw will stop, and once empty, the screw feeder will begin working.


    2. Extruder: To plasticization and degassing, a specialized single screw extruder applied to melt the pre-compacted material. The plastic scraps will well melted, plasticized in the first stage extruder, and the plastic will be extrude by the second stage extruder. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.


    3. Non-stop hydraulic screen filter changer: Double stage filtering, fore filtering in the first extruder, and fine filtering in the second extruder, to reduce the frequency of filtering sieves changing. The requirements on the filter technology depend heavily on the quality of the input material as well as the planned use of granules.


    4. Water cooling: Made of 304 stainless steel, 4 meters length that fill with water, too cooling the melted plastic.


    5. Cutting pelletizing: Supplied with speed steel and hard alloy steel cutting blades for reliable performance. Compact structure allows less maintenance.


    Plastic Recycling Pelletizing Machine Advantages:

    • Double times degassing and filer, stable output
    • Very low labor request.
    • Automatic constant temperature control,stable running
    • CE certification, SGS certification
    • International advanced recycling technology

    Technicial specificaions for HDPE Flakes Waste Plastic Recycling Pelletizing Machine :


    MachineSJ120-120SJ130-130SJ150-150SJ160-160SJ180-180
    Capacity(kg/h)200-350300-400400-550600-750800-1000
    First stage screw(mm)120130140160180
    First stage main motor(kw)75/90/110110/132160185/220250
    First stage screw l/d3335353535
    Second stage screw (mm)120130150160180
    Second stage main motor(kw)22/3045557575
    Second stage screw l/d1010101010
    Screw max speed90rpm90rpm90rpm90rpm90rpm
    Total power consumption65-85kwh105-117kwh150kwh178-200kwh230kwh
    Delivery time50-75 work days
    WorkersOneTwoTwoTwoTwo

    More Images:


    Quality HDPE Flakes Plastic Granulating Line for sale
