    1500kgh Plastic Recycling Washing Machine 90KW Debaler Pet Washing Line

    PET Bottle Crushing Washing Recycling Machine


    Description:


    Post-consumer PET bottles are doubtless among the most important components of the Plastic Recycling Plant. Recycled PET may be used in a wide variety of final applications, with very interesting and remunerable financial returns for the recycling companies.


    The waste PET bottle crushing washing recycling machine line is used for crushing, washing, separation of bottle cap and label, depriving of impurity and glue material, and drying for bottle flakes. Then those waste PET bottle will become reusing PET materials.


    Customers can have PET bottle crushing washing recycling machine line to produce high quality PET flakes for selling, drawing filament, producing PET particles or blowing bottles.


    PET Bottle Crushing Washing Recycling Machine process:

    1500kgh Plastic Recycling Washing Machine 90KW Debaler Pet Washing Line


    Models&specifications of PET Bottle Crushing Washing Recycling Machine :


    ModelBKL-500BKL-1000BKL-1500BKL-2000BKL-3000
    Capacity(kg/h)5001000150020003000
    Installation Power (kw)150250300400500
    Man power4-6 person6-8 person8-10 person10-12 person12-16 person
    Water supply4-5m3/hr8-10m3/hr8-12m3/hr10-15 m3/hr20-30 m3/hr

    A typical PET recycling line is consisit of the following components:


    Belt conveyorFor waste material infeeding
    Bale Breakeropens the tight bales of PET bottles
    Trommel screenseparate heavy stones, caps, sand or other small contamination down
    Pre-washing machinePre -Washing the whole bottle surface
    Label removerRemove 95% lables on bottles before crushing
    Sorting beltsorting the dirties out before granulating.
    Metal Detectordetects metal contamination
    Granulator / CrusherWet crushing bottles to flakes size
    Screw conveyorConveying material to downstream machines
    High speed Friction washerScrub washing and cleaning flakes
    Single screw or double screw washing tankflakes floating washing and conveying.
    Hot Washing Tank/ steam washerHot wash with detergent for clean flakes and remove glue
    Horizontal dewatering machine ( Dehydrator )Dehydrate flakes to dry flakes
    Second granulator (optional)Crush flakes to final size required.
    Zig-Zag label separato (air classifier)separate labels in the crushed flakes.
    Wind conveying systemMaterial transport and bagging
    Control cabinetcontrol the whole system intensively.

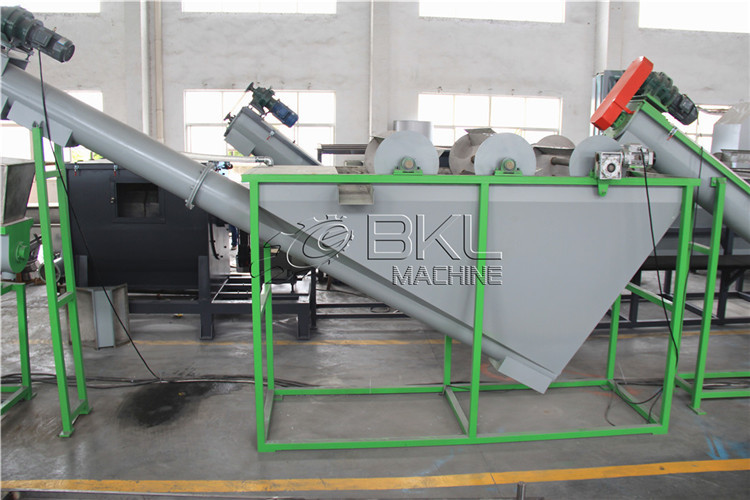

    Photos of PET Recycling lines:
    1500kgh Plastic Recycling Washing Machine 90KW Debaler Pet Washing Line1500kgh Plastic Recycling Washing Machine 90KW Debaler Pet Washing Line
